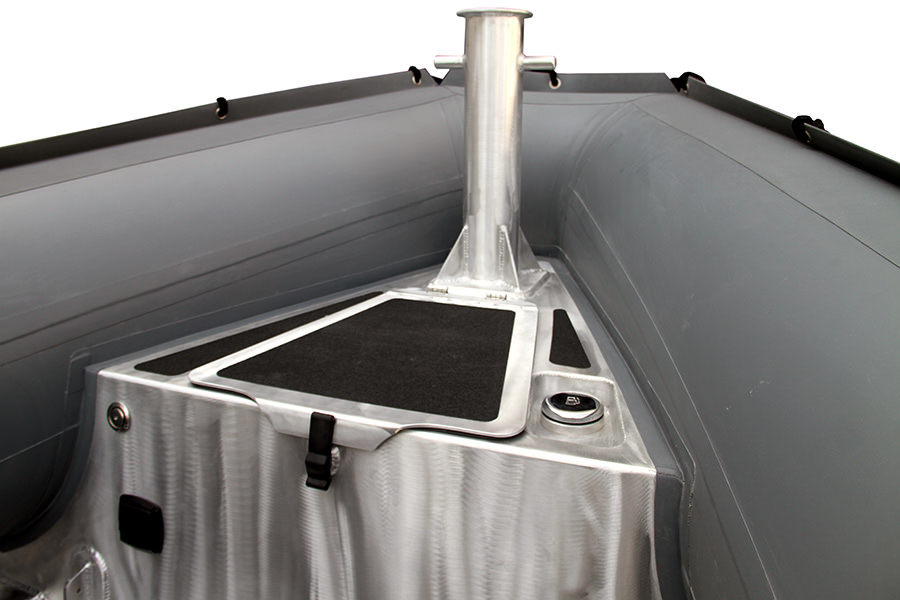

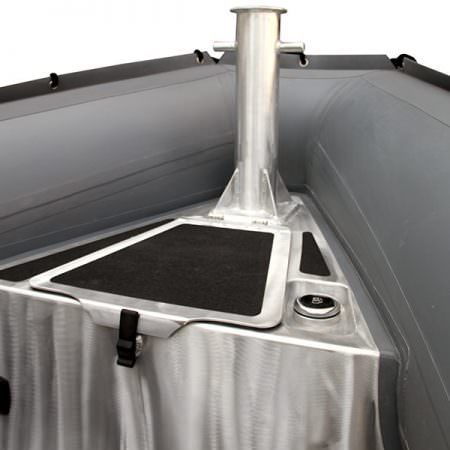

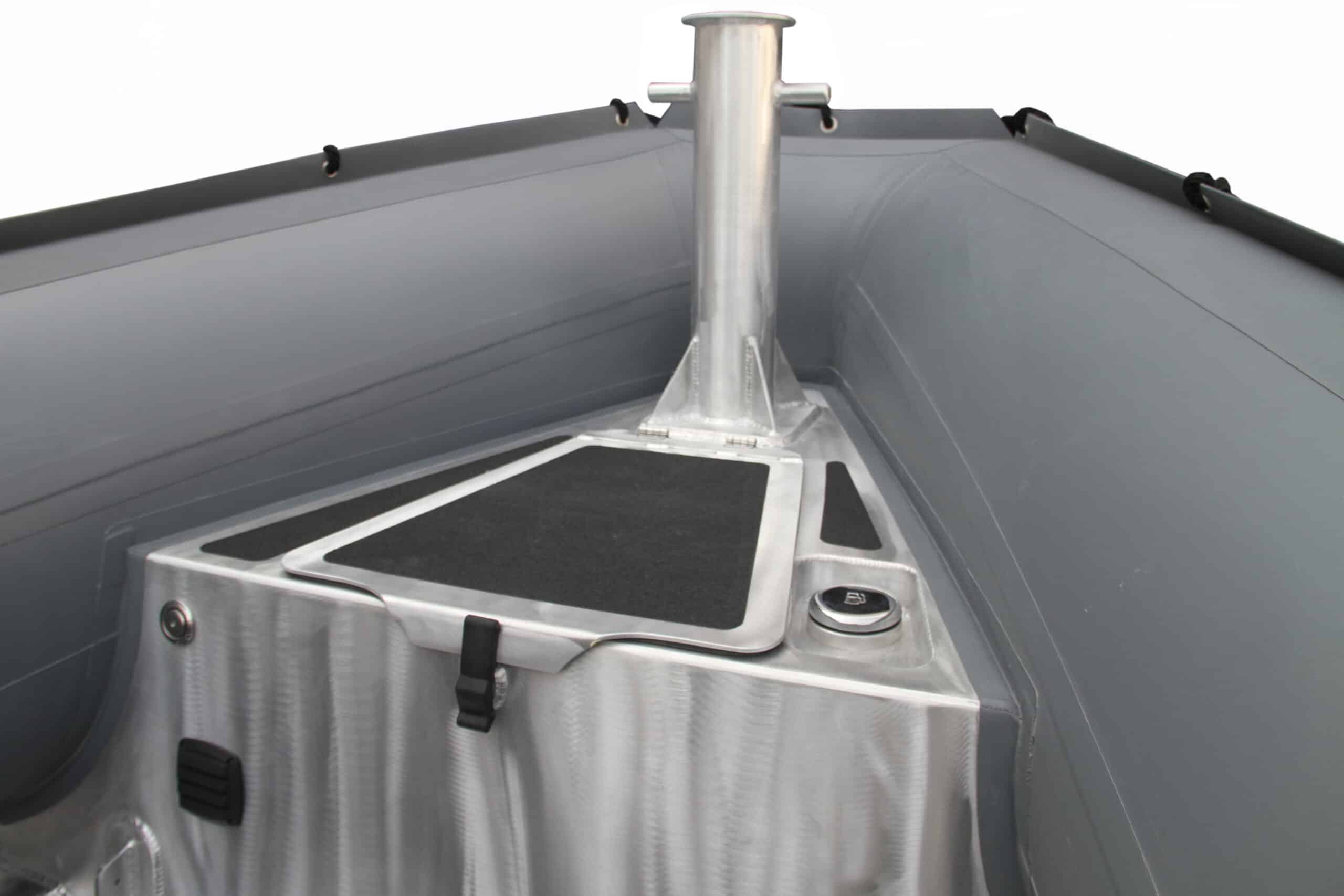

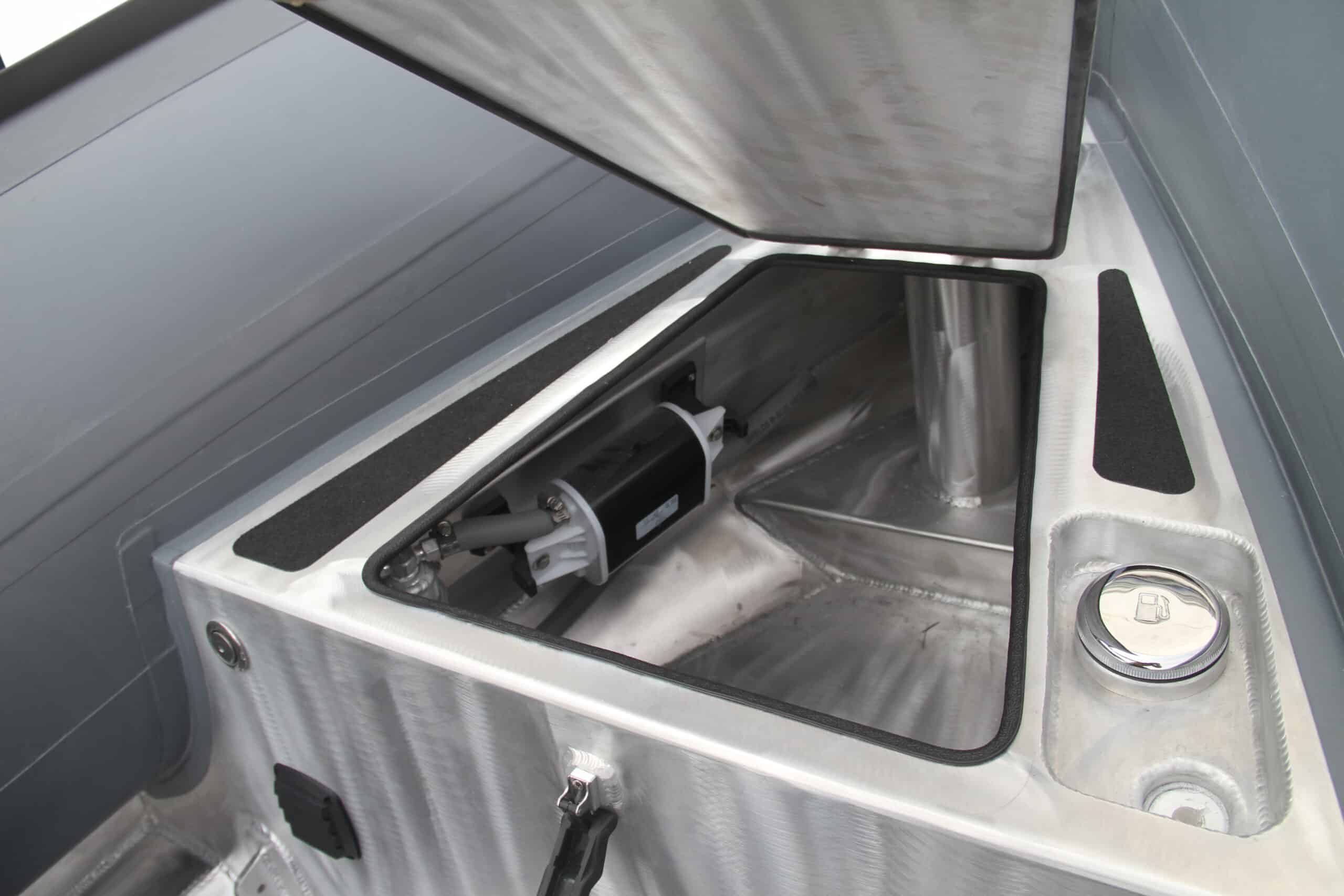

Bow Locker
Heavy Duty Bow Towing Post
Large Square Transom Alum. Reinforced Base
Extra Heavy Duty Stringers and "V"Hull
Non-skid (CSM) Fabric on Tube
Integrated Aluminum Fuel Tank
Pressure Relief Valves
Ultra High Quality Welding
Bow U bolt and lateral towing eyes
Double Solid Rubrail
Heavy Duty "Aluminum" Keel Protector
1670 D-Tex ORCA (CSM) Coated Fabric
Sunbrella Fabric Boat Cover Available
Reinforced Alum. Lifting Eyes with SS Rings
Internal Aluminum Plate with Security Lip
Reinforced (CSM) Fabric Handles
Non-skid Rubber Floor
Reinforced Alum. Transom Towing Eyes w/ SS Rings
Reinforced Alum. Transom Tie Downs w/ SS Rings
Hydraulic Steering System and SS Wheel
Custom Colors & Consoles Upon Request
Overall Length
24'8" / 7.52m
Overall Beam
9'2" / 2.80m
Inside Length
19'9" / 6.02m
Number of Chambers
6
Inside Beam
4'8" / 1.42m
Tube Diameter
24" / 0.61m
Person Capacity
20
Weight
1758 lbs / 799kg
Recommended HP
150 hp / 111.9 kw
Maximum HP
250 hp / 186.5kw
Shaft length - Single Engine Installation
25" / 63.5cm
Shaft length - Twin Engine Installation
20" / 50.8cm
Fuel Built-In Tanks
65 gal / 246 lt - EPA compliant fuel tanks, 7% reduction approx.
RDC Design Category
C
Deadrise
23°
Marine Grade Aluminum Hulls
Hydraulic Steering System

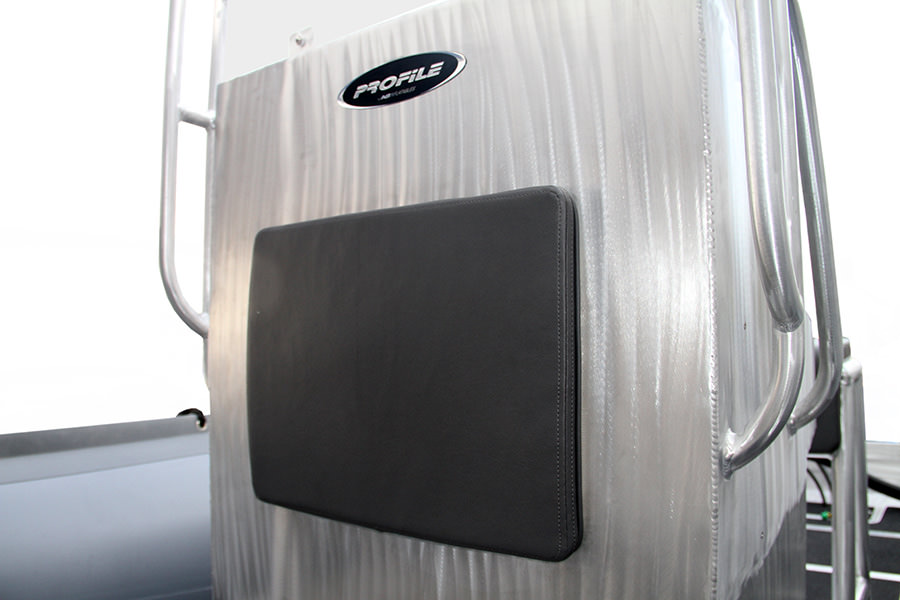

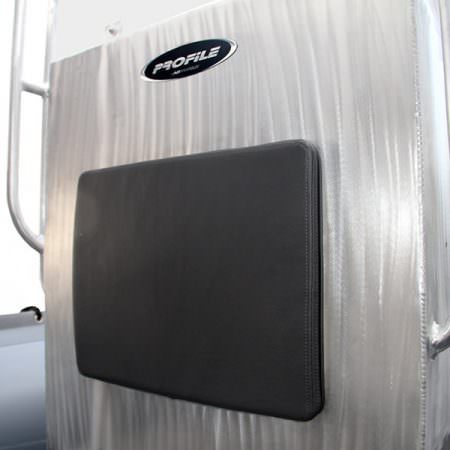

Leaning Bolster
Bow Towing Post
Aluminum Console with Plexiglass Windshield & Rail
Standard Rigging From Factory
SS LED Navigation Light
All Around LED Anchor Light
Automatic Bilge Pump
Master Switch
Fuel/Water Separator & Canister
Fuel Sending Unit
Reinforced Aluminum Bow Eye
Reinforced Aluminum Tow Rings
Drain Scuppers
Solid Double Rub Rail
4 Aluminum Davit Lifting Points
Non-Skid Orca (CSM) Fabric on Top of Tube
Heavy Duty Non-Skid Rubber Floor Panels
4 Layer Reinforced Seams
Heavy Duty 1670 Decitex Orca
Orca (CSM) Fabric
Lifeline Around Tube
Hand Pump
Maintenance Kit
Owner´s Manual
Customized Aluminum Consoles & Seats
Fiberglass or Aluminum Jockey Consoles
Aluminum Jockey Seats
Bow Rider Seats
Sunbrella Fabric Boat Cover
Lifting Harness
Electronics Upon Request

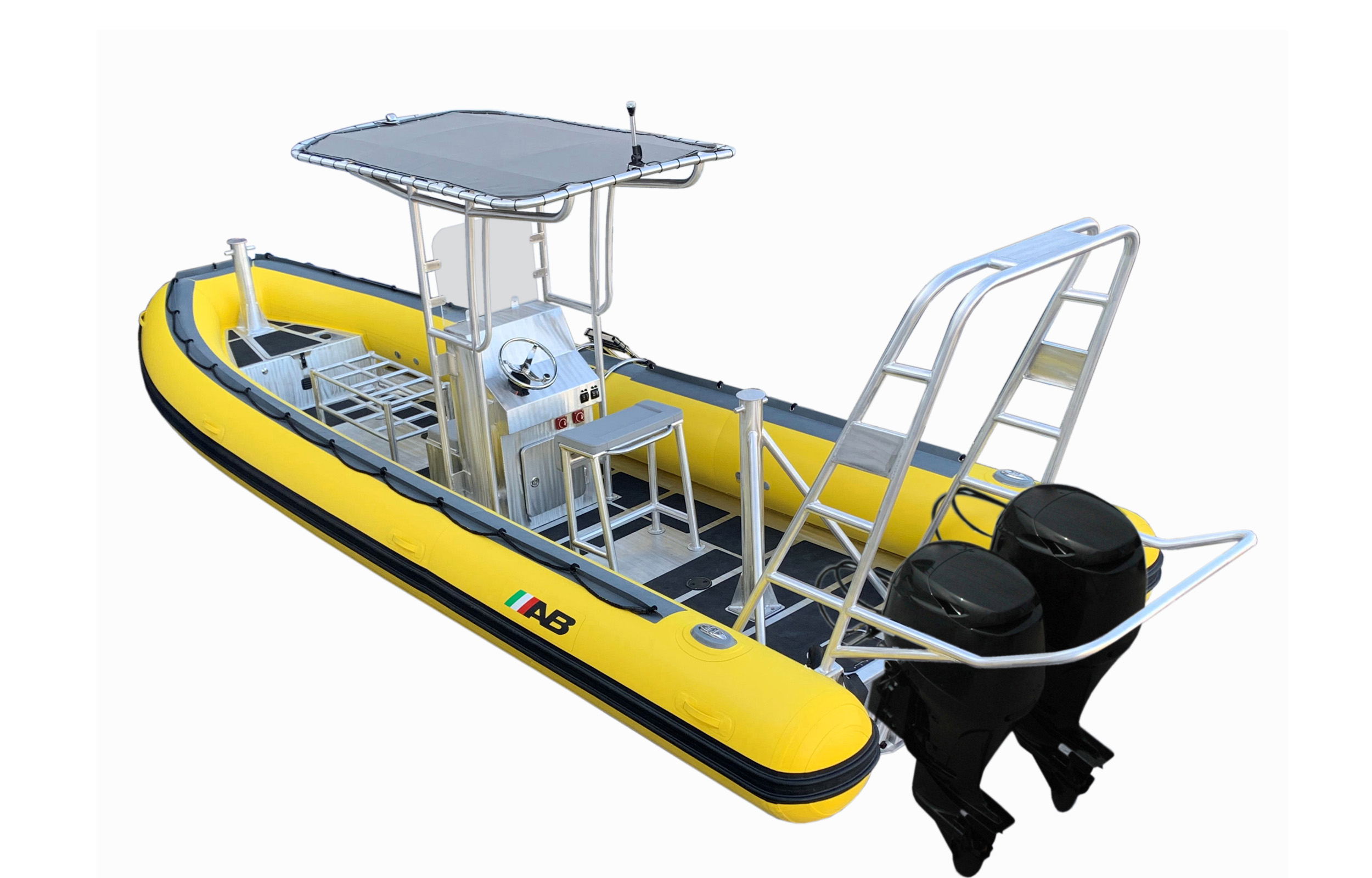

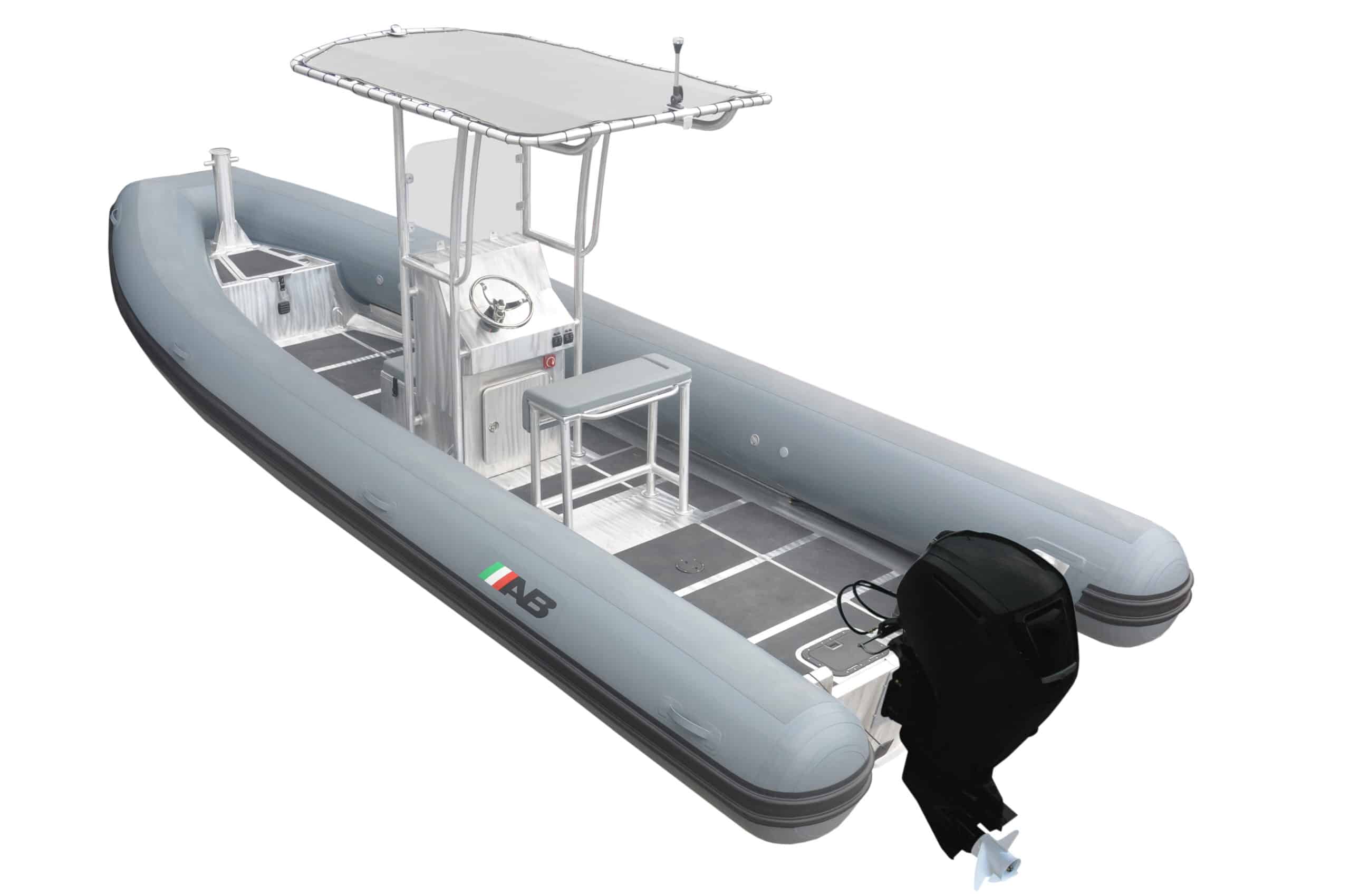

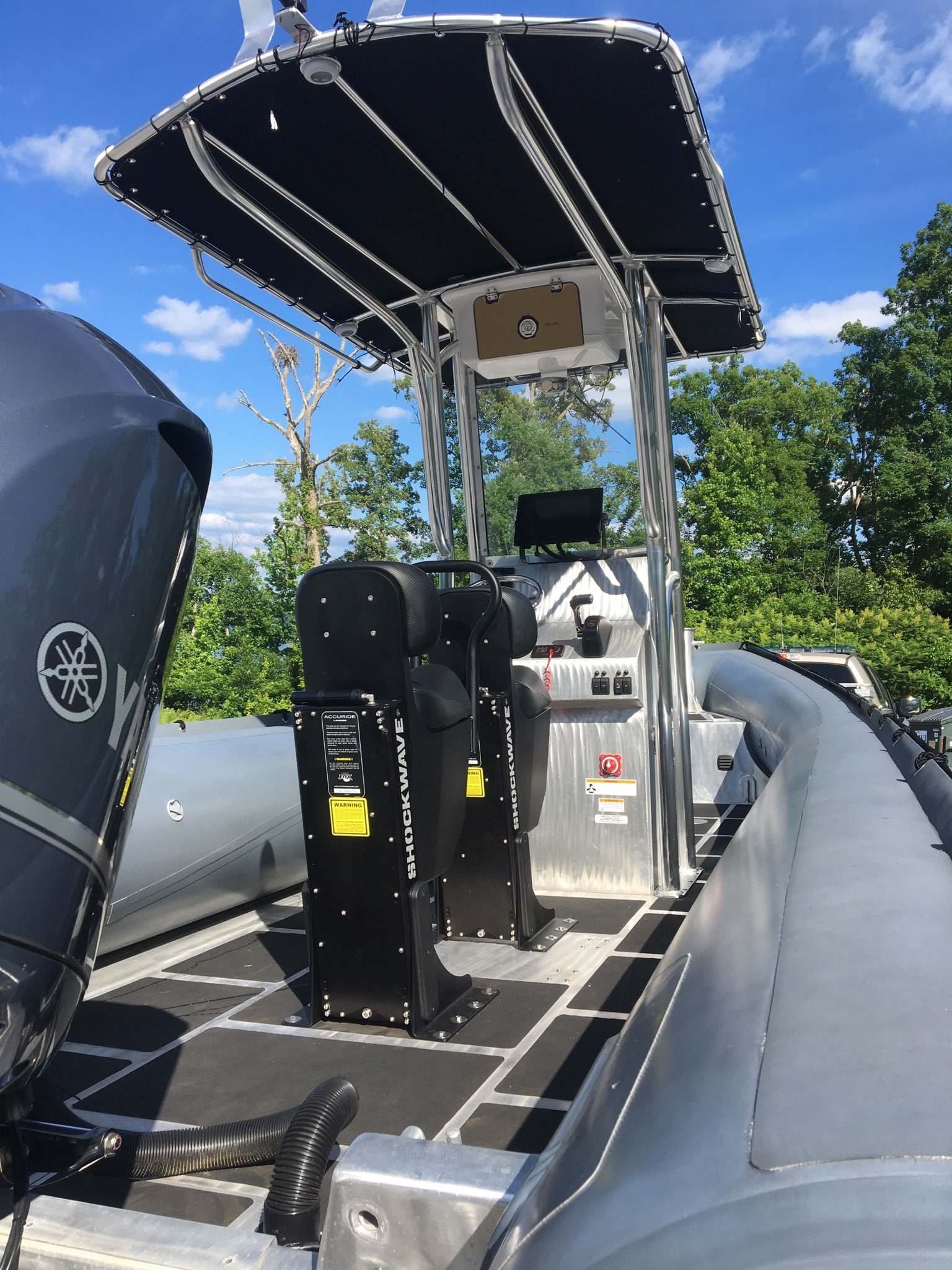

T-Top
Stern Towing Post
Light Arch
Engine Guard
Color Boat Customization
