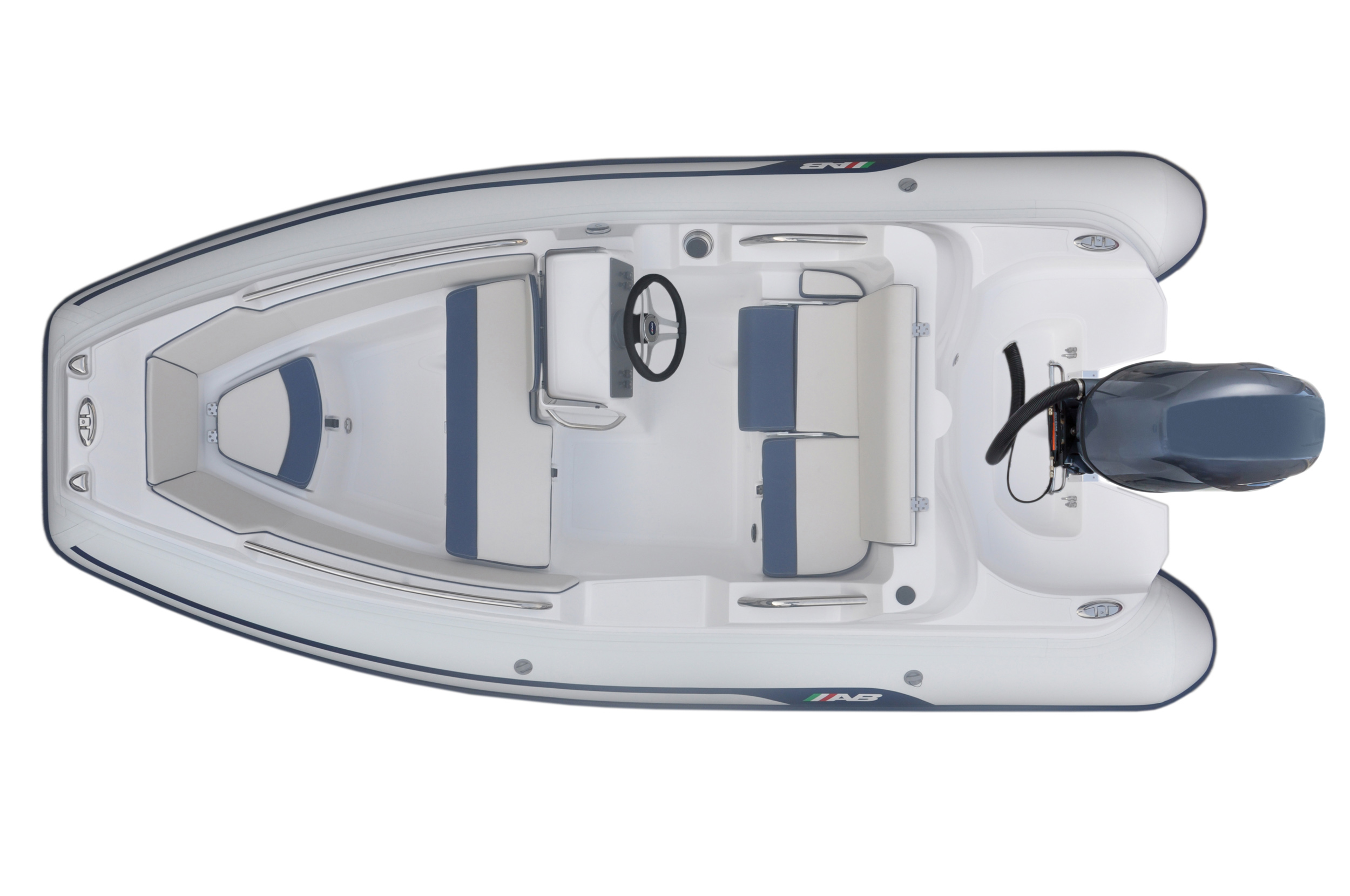

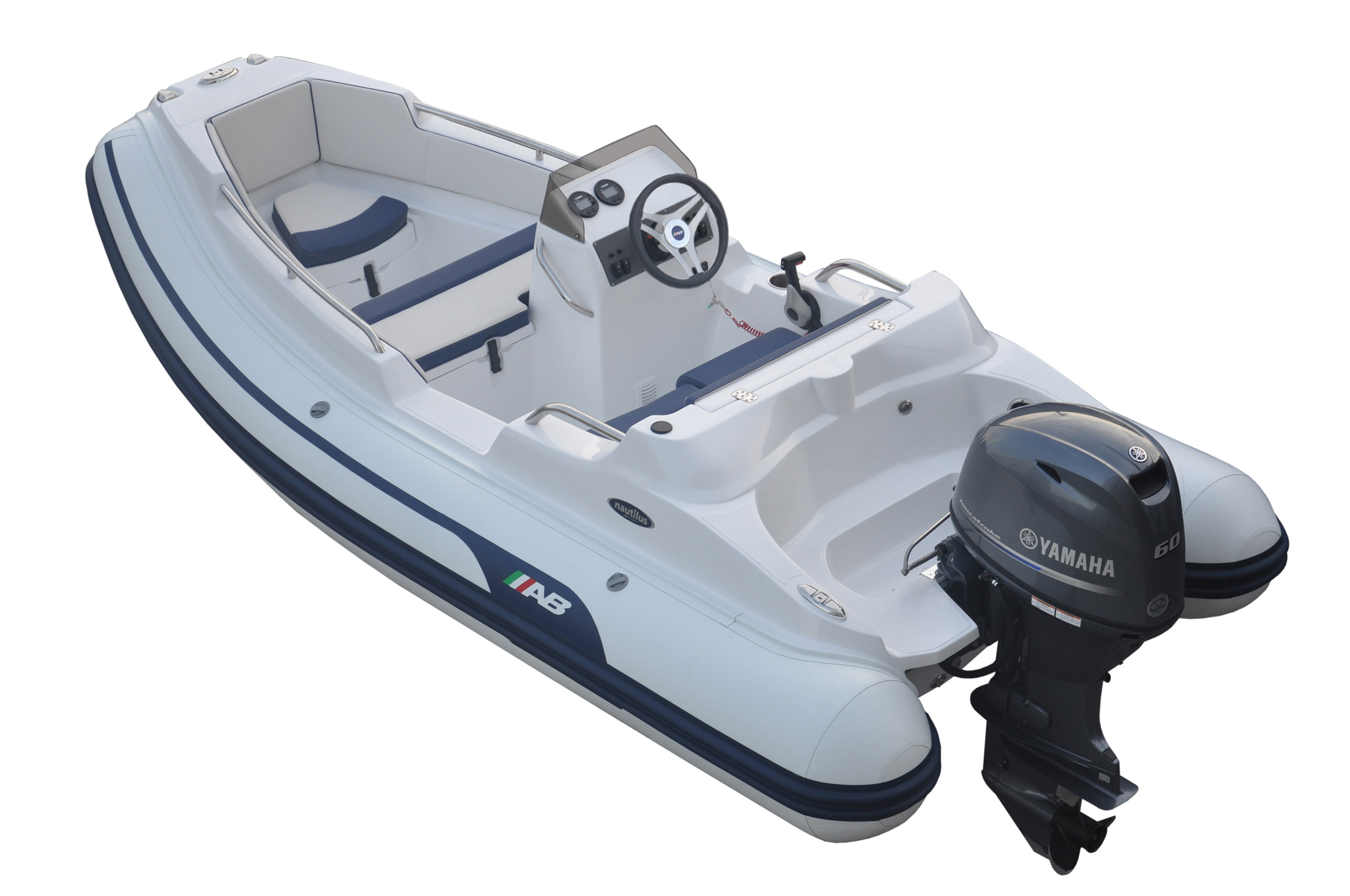

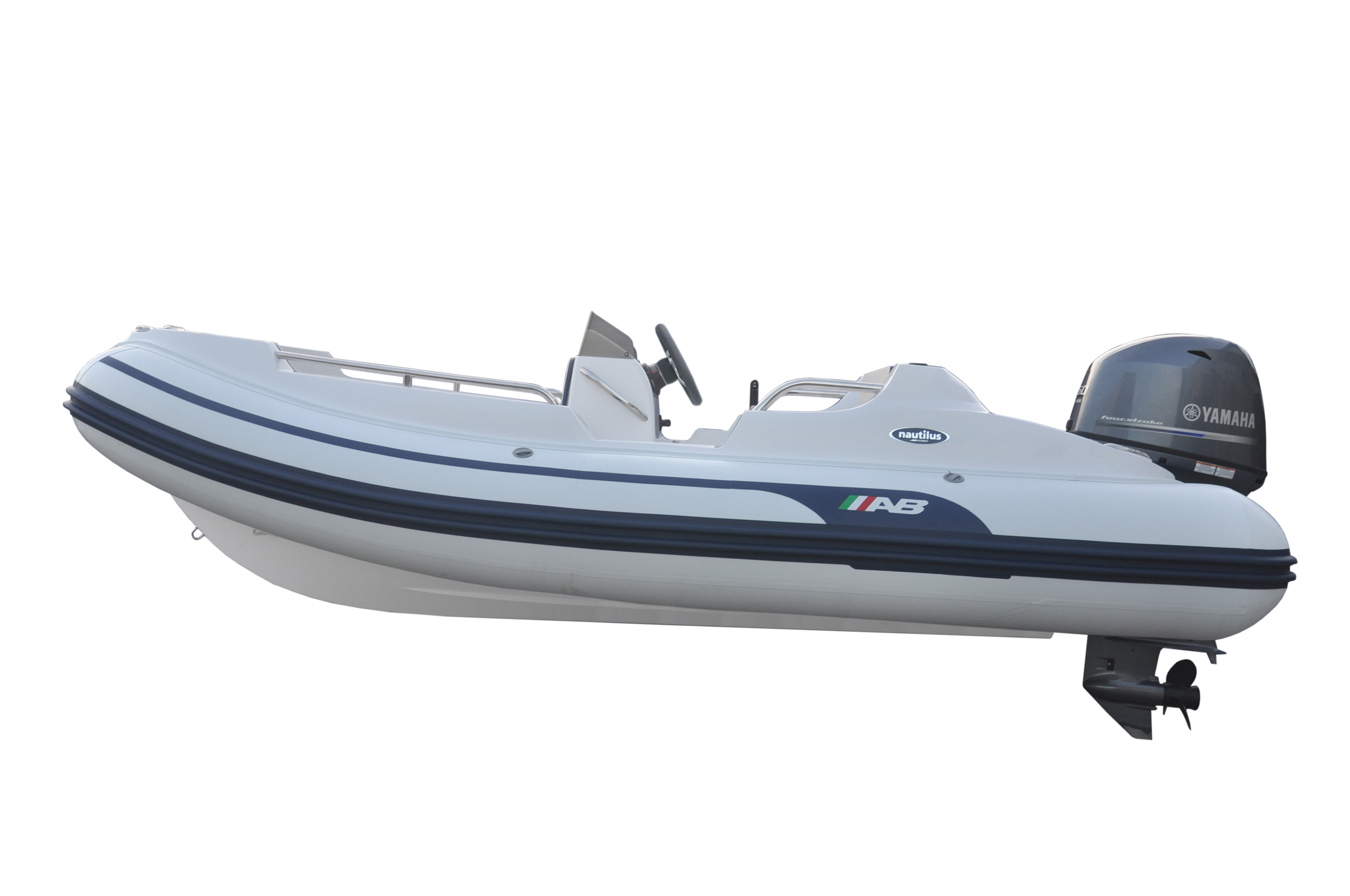

Nautilus

13 DLX

LUXURY CONSOLE TENDERS

A perfect blend of thoughtful design, top-of-the-line features and elegant craftmanship.

Learn more

Key Features

  • Mechanical Steering System and SS Wheel
  • Sporty Console Look Design with SS Hand Rail & Plexiglass Windshield
  • 12V DC SOCKET & USB PORT
  • Height Adjustable Steering Wheel
  • 1 SS Cup Holder
  • SS Rear Seat Port/Starboard Hand Rail
  • LED Navigation Lights
  • All Around Anchor Lights
  • Compartment Yacht Quality finish - easy Maintenance
  • Larger Fuel Tank Capacity
  • Rigging Included
  • "V" Hull
  • NMMA Certified Aluminum Fuel Tank
  • More Storage Capacity
  • ORCA (CSM) Coated Fabric
  • Sunbrella Fabric Boat Cover Available
  • Lateral Cushions for better comfort
  • Lateral Bow SS Rails for Added Safety
  • Reinforced (CSM) Fabric Handles
  • Custom Colors Upon Request

Specs

  • Overall length13' / 3.96m
  • Overall Beam 6'5" / 1.95m
  • Inside Length 9'9" / 2.97m
  • Inside Beam 3'1" / 0.94m
  • Tube Diameter 18" / 0.46m
  • Number of Chambers 3
  • Person Capacity 5
  • Weight 612lb / 278kg
  • Recommended HP 40hp / 29.8kw
  • Maximum HP 60hp / 44.8kw
  • Shaft Length 20" / 50.8cm
  • Fuel Built-In Tanks 15 gal / 57 lt - EPA compliant fuel tanks, 7% reduction approx.
  • RDC Design Category C

Standard Equipment

  • Hand Laid Fiberglass Deep “V” Hull
  • Stringer System Laminated into Hull
  • Diamond Shape Non-skid Deck
  • Integrated Marine Grade Aluminum Fuel Tank (EPA compliant fuel tanks, 7% reduction approx.)
  • 12V DC SOCKET & USB PORT
  • Plastic External Transom Plate
  • Aluminum Internal Transom Plate
  • Splash well, Draining
  • One All Integrated Deck with Bow Front & Lateral Closed Cell Cushions
  • Raised Double Rub Rail
  • Push Push Plastic Non-Corrosive 2 Stage Inflation Valves
  • Orca (CSM) Five Layer Coated Fabric
  • Hand Pump
  • Maintenance Kit
  • Owner's Manual
  • Fully Upholstered Seating – Spradling ®
  • Port Boat Entrance Step with Diamond Shape Non-Skid
  • Integrated Fiberglass Console with Lateral Seat & Cushion
  • Sporty Console Look Design with SS Hand Rail & Plexiglass Windshield
  • Molded-In Stern Seat & Cushion with SS Hand Rail & Large Storage
  • 1 SS Cup Holder
  • 4 Deck Drains
  • Hull Drain with Plug
  • Bow Locker/Seat
  • Bow Hatch Cushion
  • Built-In Cooler with Cushion
  • Console Front Access Lid
  • Bow Step with Fold Down Stainless Steel Cleat & LED Navigation Lights
  • 360° White Anchor Light Pole
  • Integrated Stainless Steel Bow Port & Starboard Hand Rails
  • Lateral Fold Down Stainless Steel Cleat
  • 3 Stainless Steel Davit Lifting Points
  • Stainless Steel Console Grab Handle
  • Stainless Steel Tie Down & Towing Rings
  • Stainless Steel Bow Eye
  • Stainless Steel Transom Tie Down & Towing Rings
  • Deluxe Carbon Fiber Style Pannel
  • 4 Waterproof Rocker Switches with Circuit Brakers
  • Battery Box
  • Battery Switch
  • Fuel and Water Separator Filter
  • Fuel Sending Unit
  • Automatic Bilge Pump 500 GPH
  • Battery Charger (Subject to Country of Delivery)
  • Mechanical Steering System
  • Stainless Steel Steering Wheel
  • Complete Tin Wiring & (Head) Heat Shrink Seal Terminals
  • 3 Layers Reinforced Seams

Optional Equipment

  • Stainless Steel Light Arch
  • Bimini Top
  • Chock Set
  • Boat Cover
  • Console Cover
  • Lifting Harness
  • Teak Floor
  • CD/Radio System
  • Compass
  • GPS
  • VHF Package
  • Stainless Steel Ski Tow
